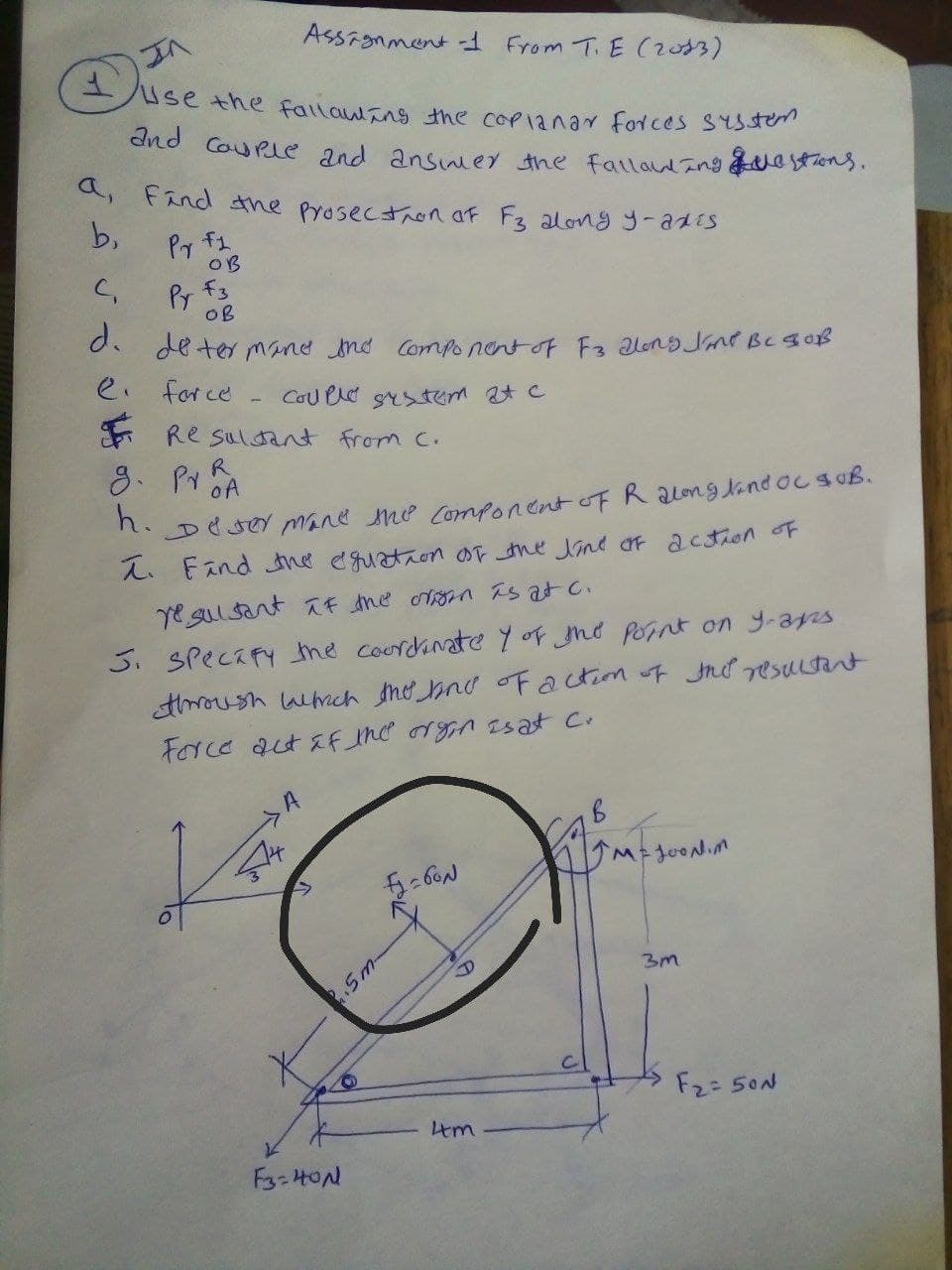

#urgent🙌 👉Ere guys eski help me out ye engineering temariwoch kalachu yhen tiyaqe srulugn idk aybalm gn bka mesrat silalchalku nw segno yemogeba assignment slehone tebaberugn it's urgent🙏🥺
I'll do it for you if you pay me. Drop your username

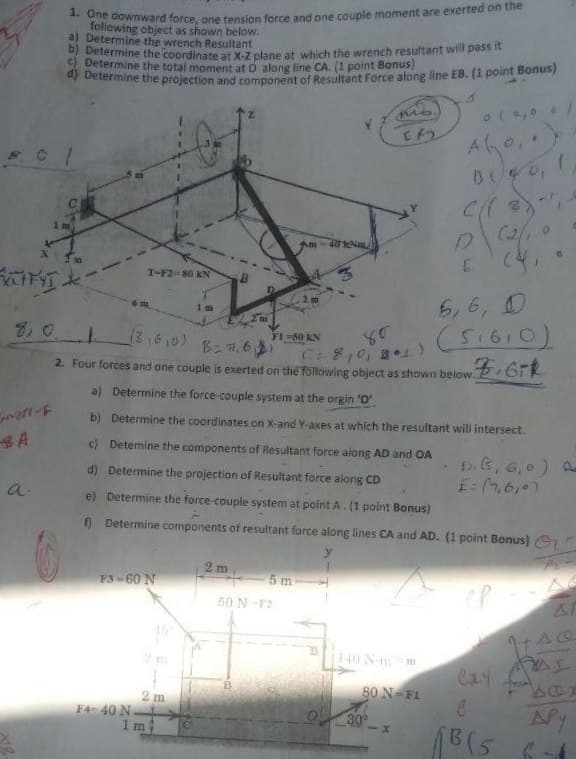

Jun 01, 2024The wrench resultant is 62 kN 2. Determine the coordinate at X-Y plane at which the wrench resultant will pass it: Since the forces are acting vertically and horizontally, the resultant force will pass through the point where the vertical and horizontal forces intersect Given that the vertical force is 50 kN and the tension force is 12 kN, the resultant force will act in the direction of the diagonal formed by these two forces Answer: The coordinate at the X-Y plane at which the wrench resultant will pass is at the intersection of the vertical and horizontal forces 3. Determine the total moment at D along line CA: To find the total moment at point D along line CA, we need to consider the moment due to each force Given: Distance from D to T, r1 = 2 m Distance from D to F1, r2 = 4 m The total moment, M_total, is the sum of the moments due to each force: Step 1: M_total = T * r1 + F1 * r2 Step 2: M_total = 12 kN * 2 m + 50 kN * 4 m Step 3: M_total = 24 kNm + 200 kNm Step 4: M_total = 224 kNm Answer: The total moment at point D along line CA is 224 kNm 4. Determine the projection and component of Resultant Force along line EB: Given that the forces are acting vertically and horizontally, we can find the projection and components of the resultant force along line EB by resolving the force into its horizontal and vertical components Unfortunately, the diagram provided does not include the line EB or the angle at which the resultant force acts. Without this information, we cannot accurately determine the projection and components of the resultant force along line EB Therefore, we are unable to provide a solution for this part of the question 5. Determine the force-couple system at the origin O: Given that there are three forces and one couple moment, we need to analyze the forces and moments acting at the origin O to determine the force-couple system Unfortunately, the diagram provided does not include the specific directions or magnitudes of the forces and the couple moment acting at the origin O. Without this information, we cannot accurately determine the force-couple system at the origin O Therefore, we are unable to provide a solution for this part of the question 6. Determine the coordinates on X- and Y-axes at which the resultant will intersect: Similar to the previous point, without specific information regarding the magnitudes and directions of the forces and couple moment, we cannot accurately determine the coordinates on the X- and Y-axes at which the resultant will intersect Therefore, we are unable to provide a solution for this part of the question 7. Determine the components of Resultant force along AD and OA: Similar to the previous points, without specific information regarding the forces and moments acting at points A and D, we cannot accurately determine the components of the resultant
Jun 01, 2024Beya eski ichinm mokrilign kalaschegerkush
AI Photo kind ayseram mn enarglsh
